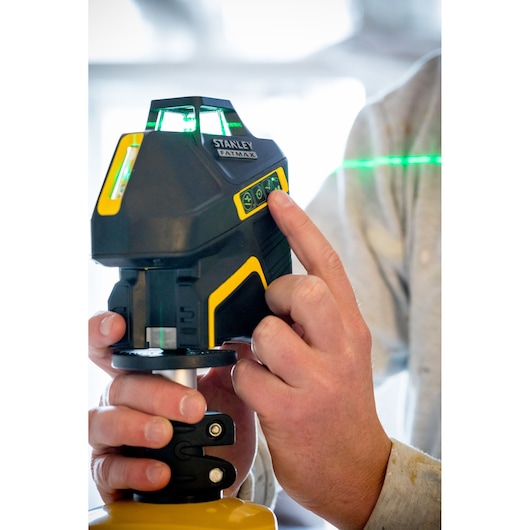

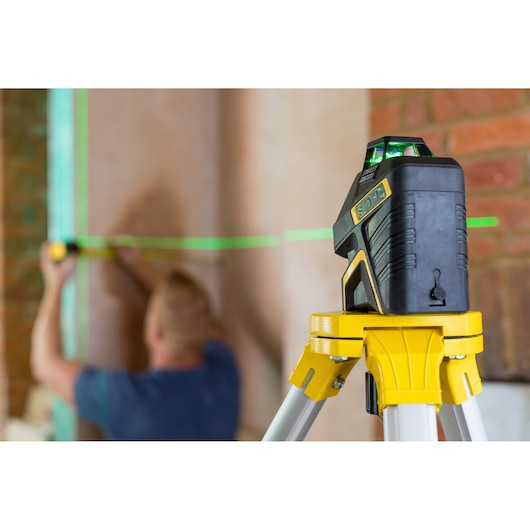

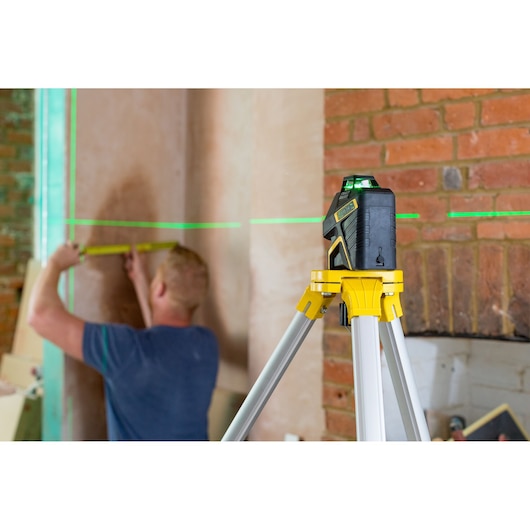

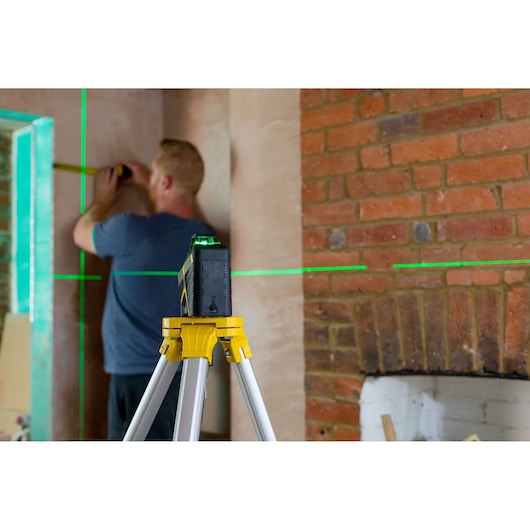

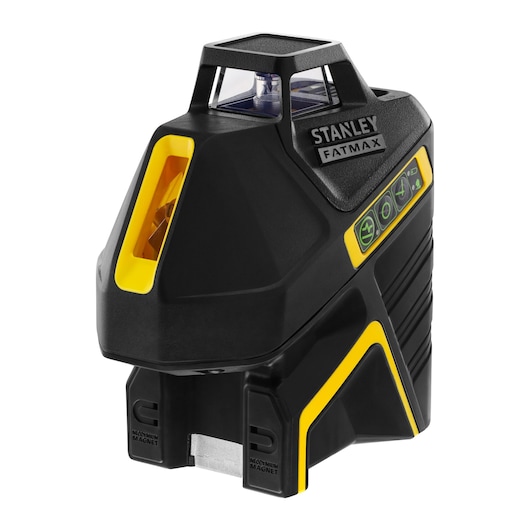

STANLEY® FATMAX® Cross Line With Horizontal 360° Laser Level - Green
FMHT77617-1
STANLEY® FATMAX® Cross Line With Horizontal 360° Laser Level - Green
- CROSS LINE LASER BEAM PROJECTION: With 1 x 360° horizontal and 1 x vertical line to create a cross line plus 1 x down plumb dot
- GREEN BEAM LASER: With a visible working range of up to 30M; up to 50M with a detector
- PRECISION AND ACCURACY: +/- 3mm at 10m
Additional Features
- IP RATED TO IP54: Protects against dust and water spray
- PENDULUM LOCK: For safe transportation
- PULSED BEAM MODE: Allows for use with a detector over an extended working range, up to 50m
- RUNS ON: Internal Li-Ion battery
- INCLUDES: Carry Case, glasses, target card, charger and multi-bracket
- TRIPOD THREAD: 1/4” & 5/8" thread allows the unit to be mounted to a tripod
- WALL TRACK LAYOUT: Provides line visibility and alignment for wall track layout
- MAGNETIC BASE: Allows for it to be mounted directly to metal track to ensure accurate projections all around
Specifications
|
Visible Working Distance - Radius [Metric]
|
30 m
|
|
Battery Voltage
|
7.2 V
|
|
Product Width [Metric]
|
35 cm
|
|
Working Distance with Detector [Metric]
|
50 m
|
|
Laser Accuracy
|
+/-3mm@10m
|
|
Materials Housing
|
Plastic
|
|
Number of Beams
|
3
|
|
Battery Capacity
|
2 Ah
|
|
Product Weight [Metric]
|
3.9 Kg
|
|
Product Height [Metric]
|
18 cm
|
|
Battery Source
|
Rechargeable internal Li-Ion
|
|
Line Diagram
|
1 x 360° + 2 Verticals
|
|
Product Weight Gross [Metric]
|
3.9 Kg
|
|
Working Distance with Detector - Radius [Metric]
|
50 m
|
|
Display Type
|
N/A
|
|
Laser Beam Color
|
Green Beam
|
|
Leveling Type
|
Self-leveling
|
|
Number of Pieces
|
2
|
|
Pulse
|
Yes
|
|
Voltage
|
7.2 V
|
|
Product Length [Metric]
|
43 cm
|
|
Is it a Set
|
No
|
|
Packaging
|
Plastic Case
|
|
Number of Batteries Included
|
0
|
