STHT77592-1

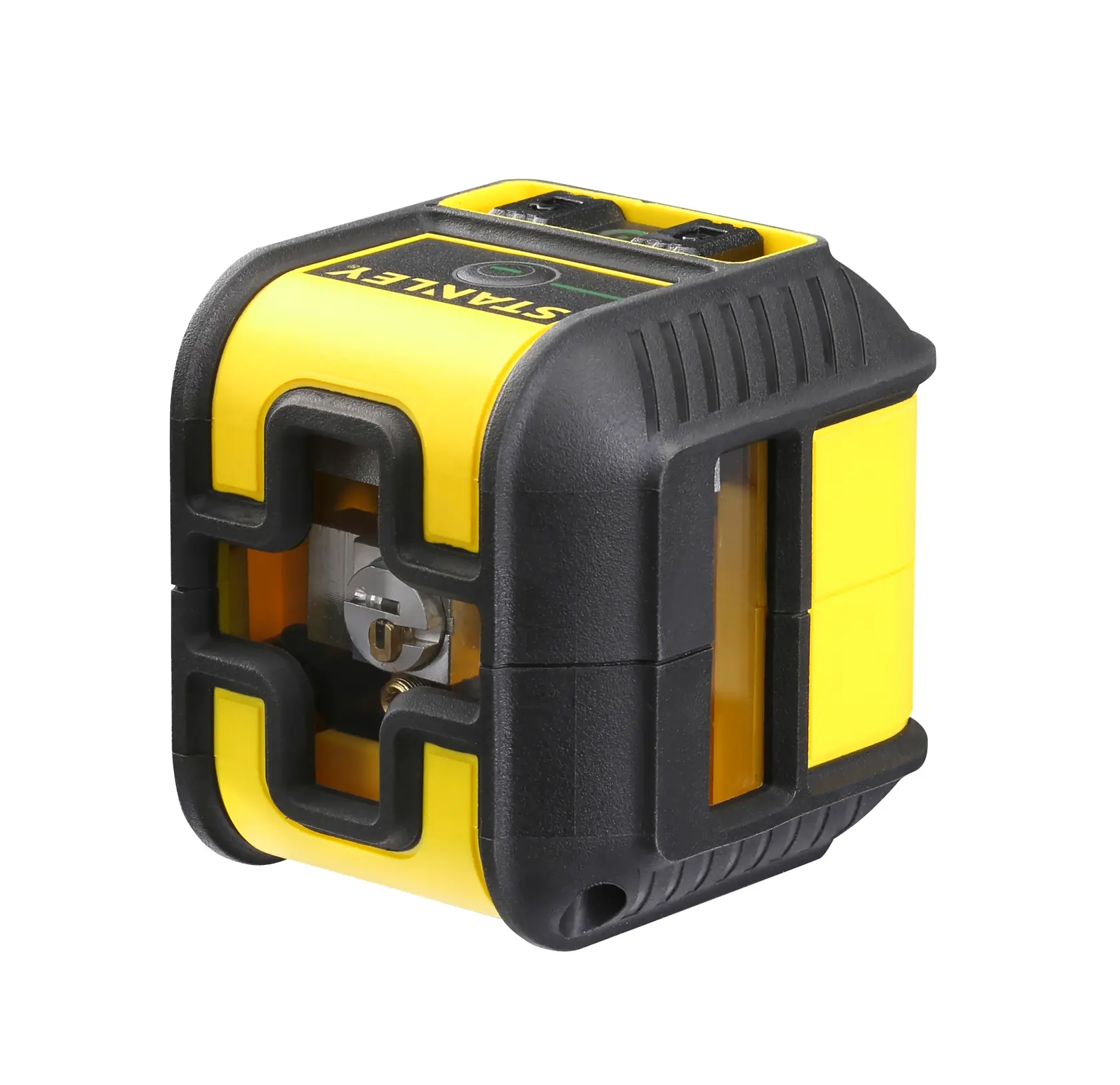

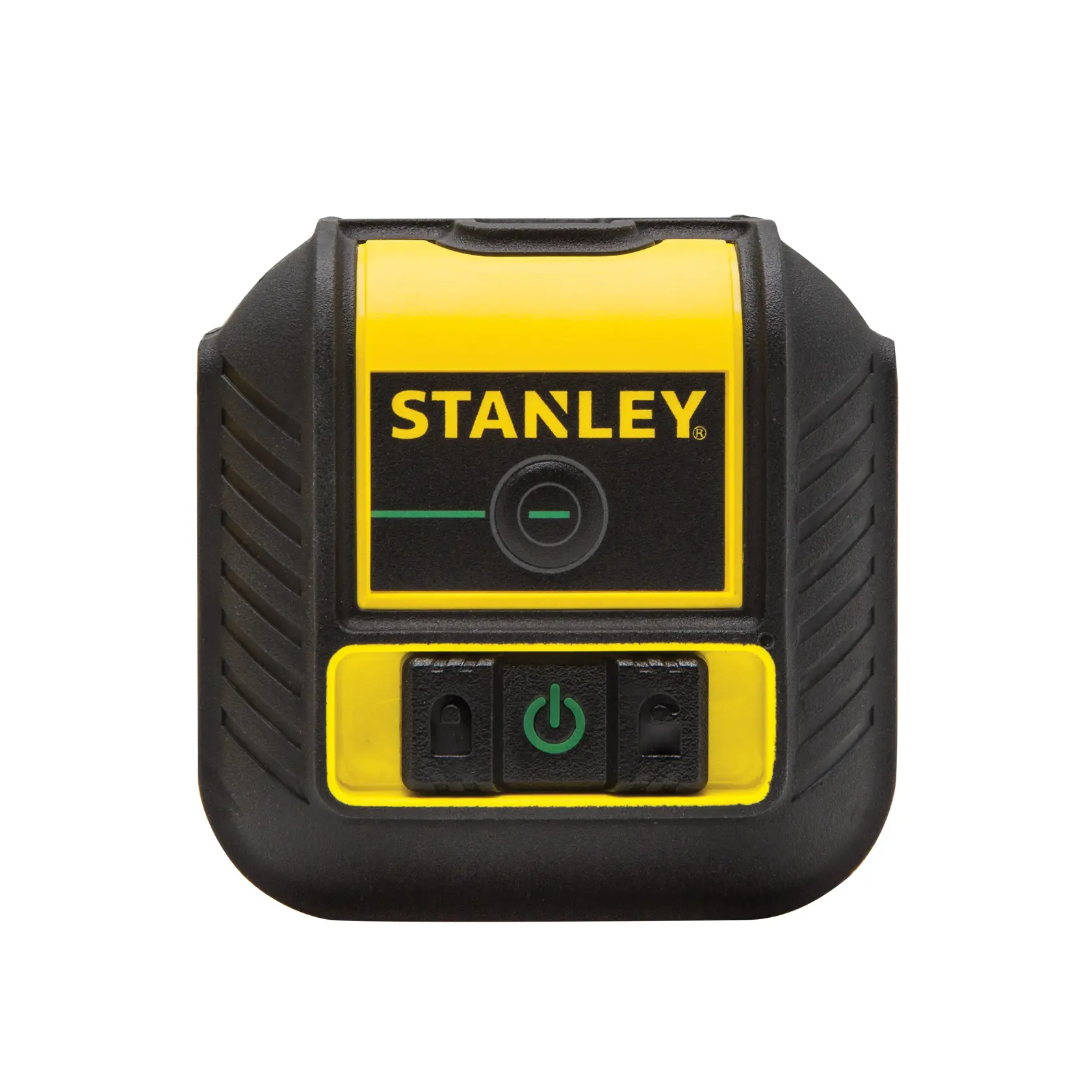

90° Cross Line Laser Level (green)

STANLEY STHT77592-1 cross line laser level, yellow and black, angled view on white background.

Product details

Auto-levelling cross and 90° green laser lines for indoor/outdoor alignment; dust protected and reinforced casing.

  • Cross Line Laser Beam Projection : With 1 x horizontal and 1 x vertical line to create a cross line plus additional 90° vertical beam
  • Green Beam Laser : With visible working range of up to 16m
  • Precision and Accuracy : +/- 5mm at 10m
  • IP Rated to IP50 : Protects against dust
  • Pendulum Lock : For safe transportation
  • Self-leveling : To +/-4°

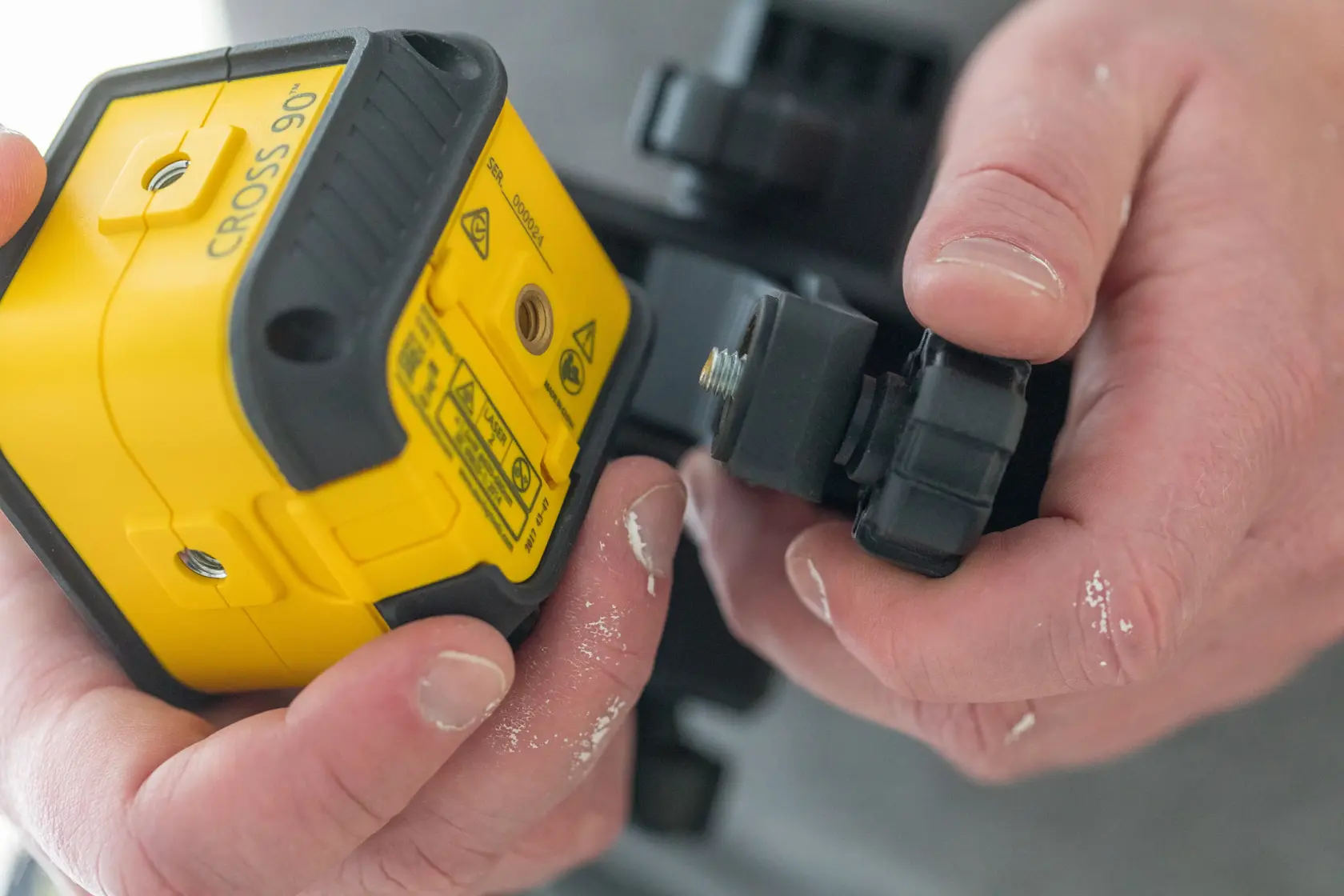

  • Tripod Thread : 1/4-in thread allows the unit to be mounted to a tripod
  • Ceiling Applications : Laser can be flipped on its back for ceiling applications

Product Type
Line Laser Level
Power Source
Corded
Total Number of Batteries
2
Color
Black
Measurement Accuracy
± 5mm @ 10 m

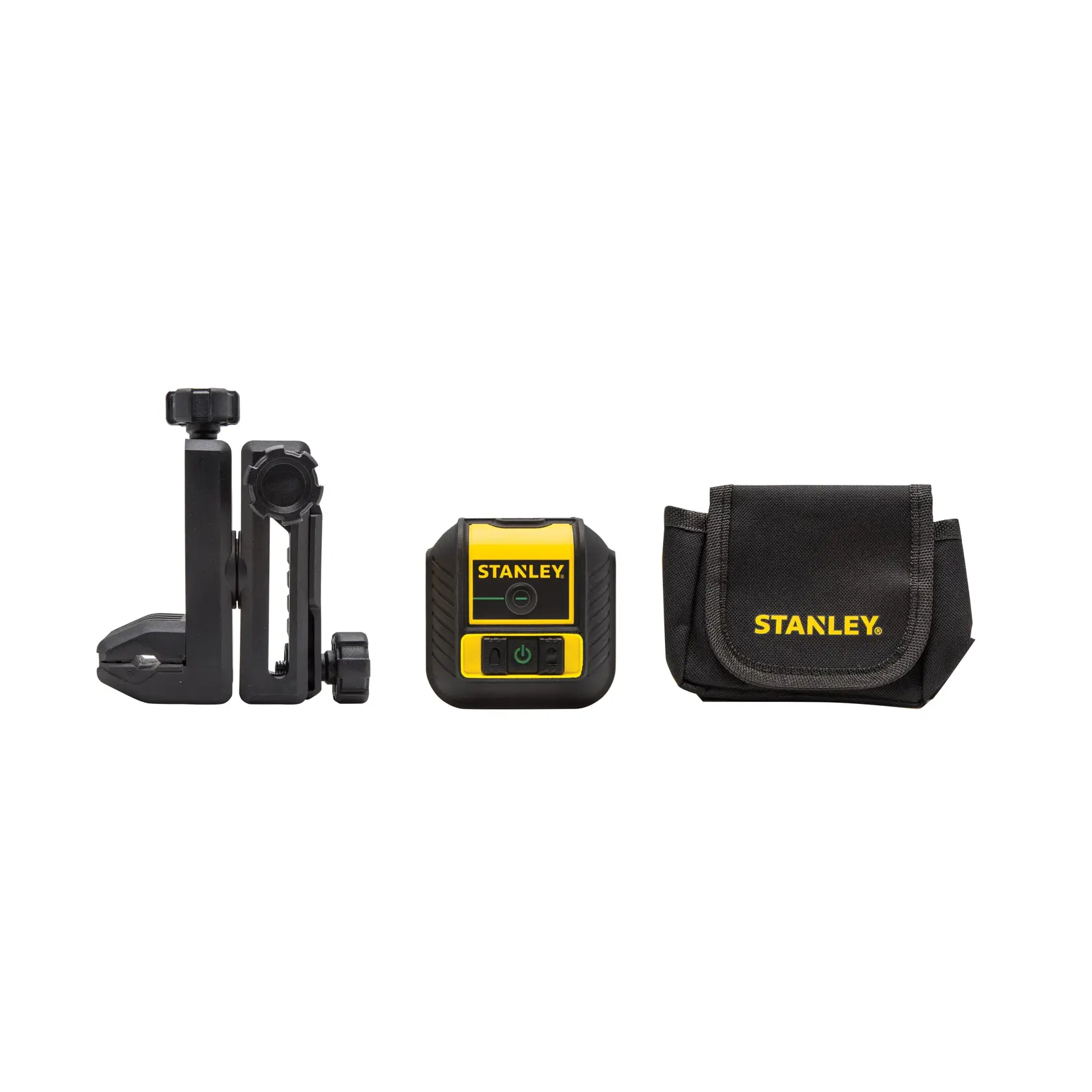

  • (1) Red Cross Line Laser Level
  • (1) Bracket
  • (2) AA Batteries

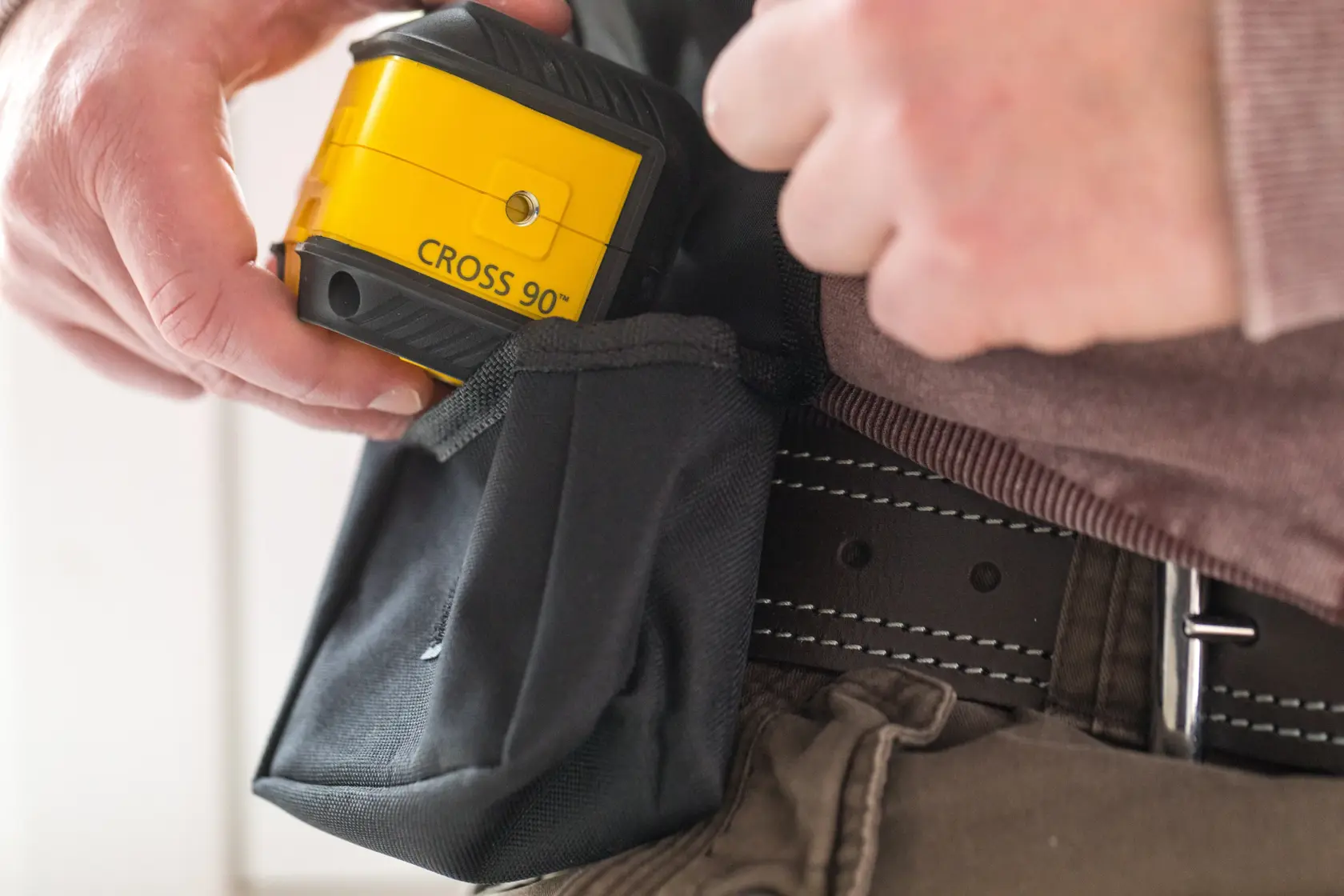

  • (1) Pouch

  • 1 Year Limited Warranty, 3 Year Limited Warranty When Registered

Downloads

Instruction Manual, Type 1
STHT77502-1_STHT77592-1_EU_T1.pdf
PDF
Instruction Manual, Type 1
STANLEY_SAFETY_WARRANTY_MANUAL_EU_-_N43744.pdf
PDF
