FMHT1-77356

3X360 Green Line Laser

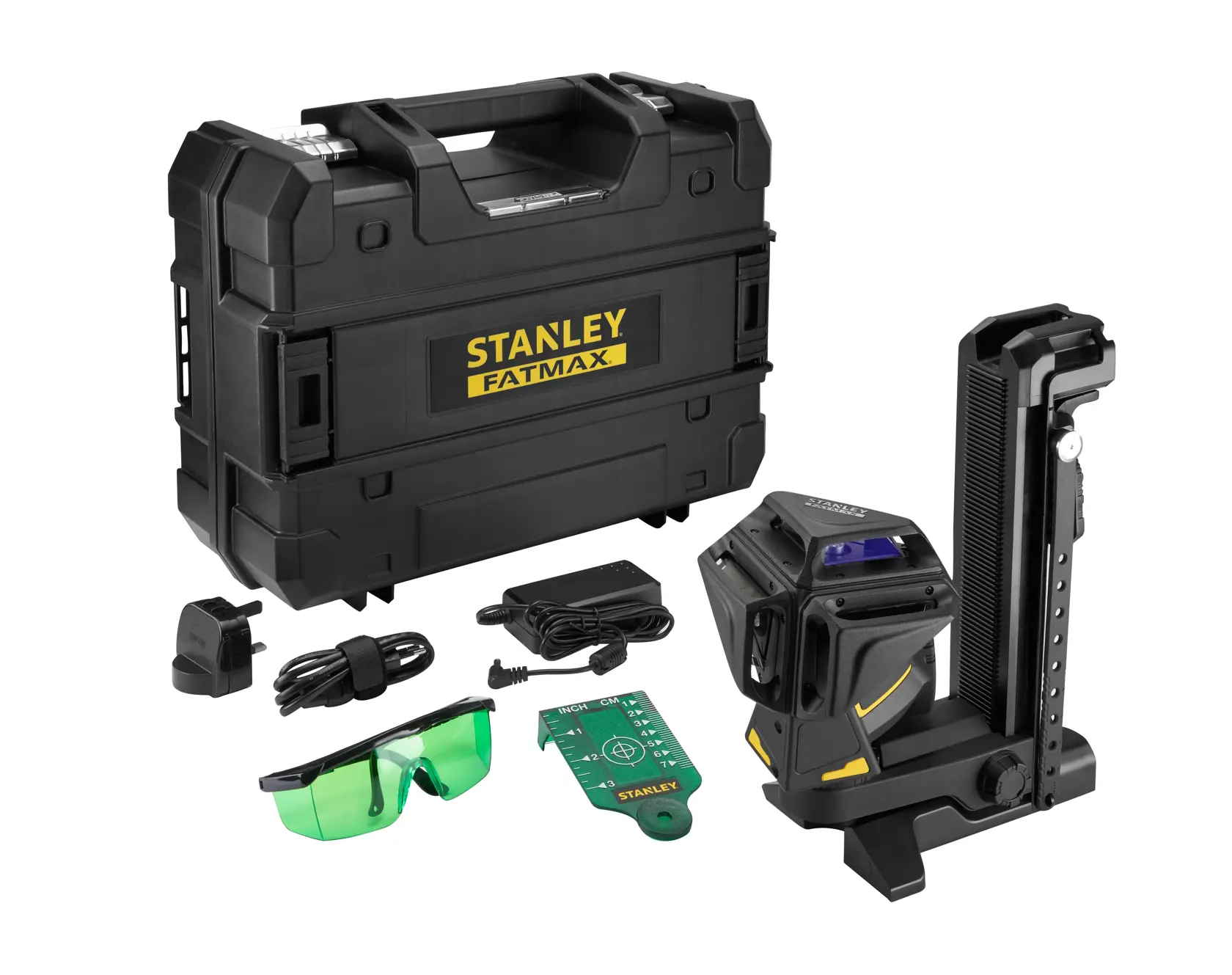

STANLEY FMHT1-77356 green rotary laser level kit with case, mounting bracket, green glasses, charger, and accessories, front view.

Product details

Multiline laser FATMAX® X3G, green

  • 3 X 360 Laser Beam Projection : With 3 x 360° laser lines
  • Green Beam Laser : With a visible working range of up to 35m; up to 50m with a detector
  • Precision and Accuracy : +/- 3mm at 10m
  • IP Rated to IP54 : Protects against dust and water spray
  • Pendulum Lock : For safe transportation
  • Self Leveling : To +/- 4°
  • Pulsed Beam Mode : Allows for use with a detector over an extended working range, up to 50m
  • Runs on : Internal Li-ion battery
  • Includes : Carry case, glasses, target card, charger and multi-bracket
  • Tripod Thread : 1/4-in & 5/8-in thread allows the unit to be mounted to a tripod

Product Type
Line Laser Level
Power Source
Unpowered
Total Number of Batteries
1
Charger Included
Yes
Color
Black

  • (1) Green Line Laser
  • (1) Green Laser Glasses
  • (1) Laser Grid
  • (1) Charger
  • (1) Target Card
  • (1) Case
  • (1) Plug

  • 1 Year Limited Warranty, 3 Year Limited Warranty When Registered

Downloads

Instruction Manual, Type 2
FMHT1-77356_FMHT1-77357_T1_EUR.pdf
PDF

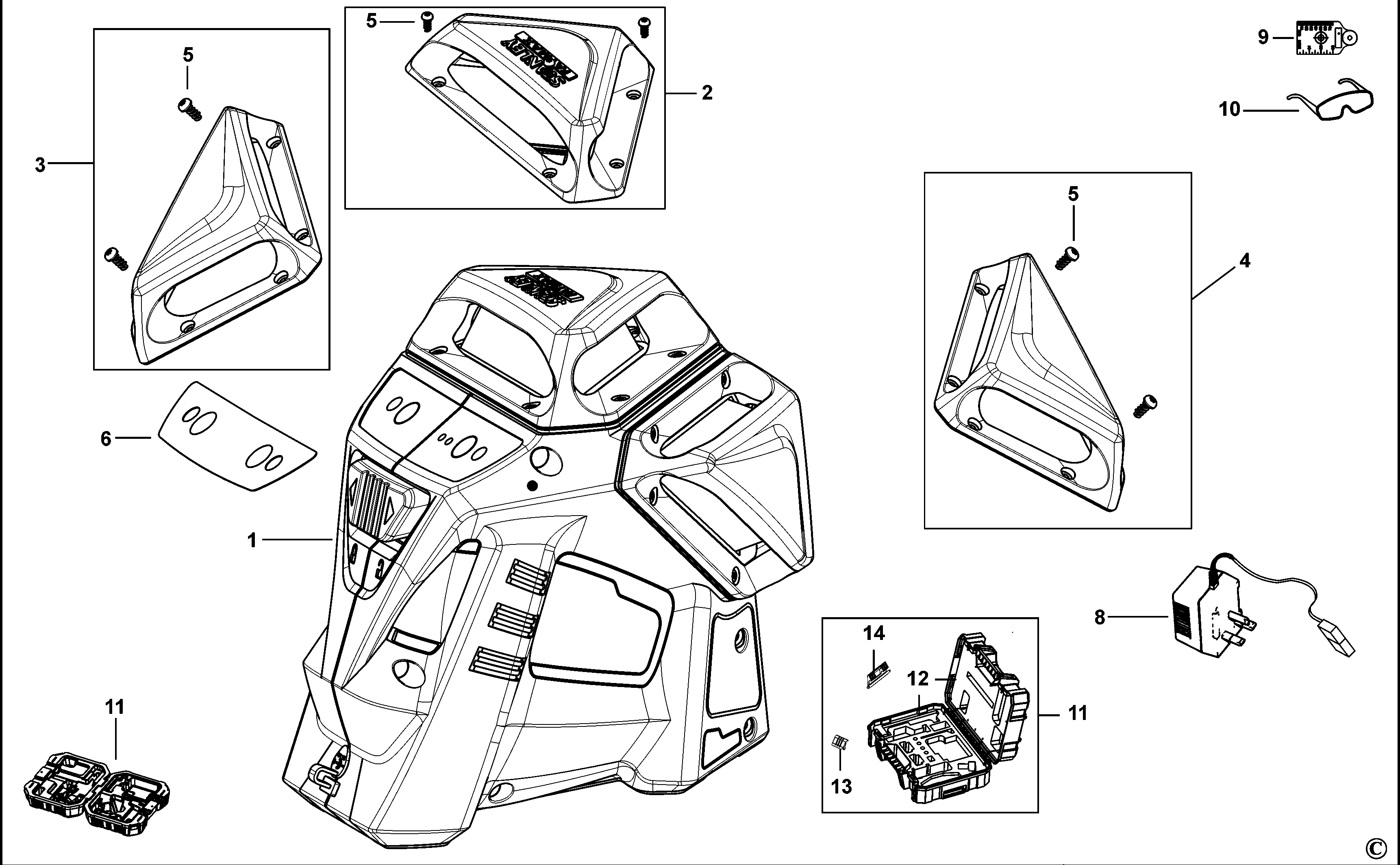

Exploded Diagram, Type 2
GIF
